Installing a new sealing ring

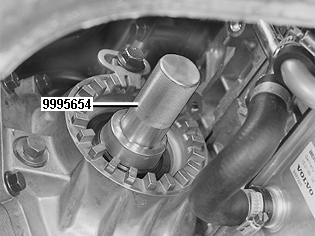

Fig 1: Identifying Installing A New Sealing Ring
GLL109852Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new sealing ring for the drive shaft.

Lubricate the seal with wheel bearing grease, P/N 1161241-3.

Use drift 9995654 . Tap in the ring to stop.

If also replacing the seal for the crown wheel shaft, proceed to Sealing ring for crown wheel shaft for bevel gear, replacing .

NOTE:

To install the drive shaft, see.
