Removing The Air Cleaner (ACL) Housing

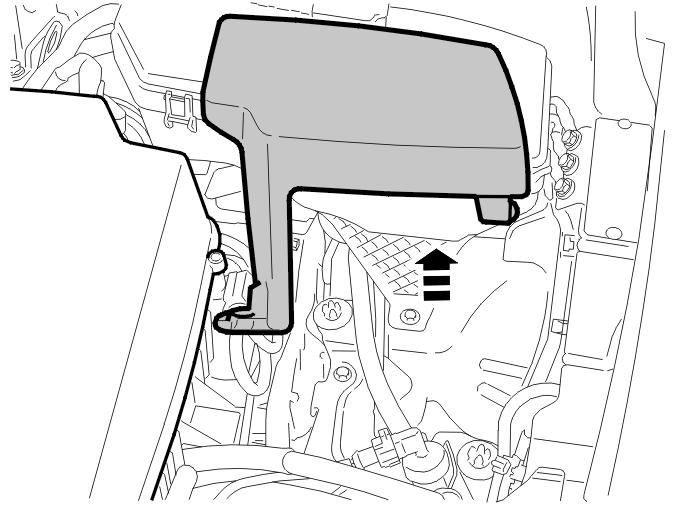

Fig 1: Identifying Cover At Side Of Air Cleaner Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cover at the side of the air cleaner (ACL) housing.

Fig 2: Air Cleaner Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the air cleaner housing ACL assembly with the intake pipe. Pull the air cleaner (ACL) housing out of its mountings.
