Checking And Transferring Components On The Transmission

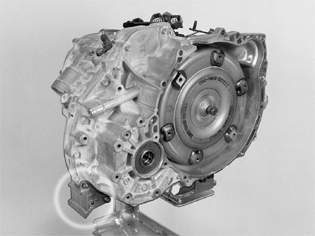

Fig 1: Identifying Holes In Transmission

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the transmission mating surfaces are absolutely  clean.

Lubricate the holes in the transmission (for the guide pins) and the hole for the guide pin for the starter motor. Use a little grease.

If the transmission is new, transfer the collision protection system to the new transmission.
