Removing All The Screws For The Gearbox/Engine

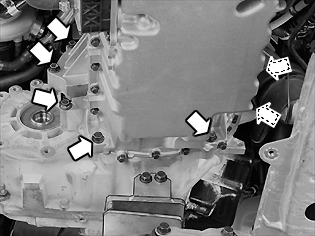

Fig 1: Gearbox And Engine Screws

GLL109606

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the remaining 7 screws for the gearbox and engine.
