Preparations When Removing Gearbox

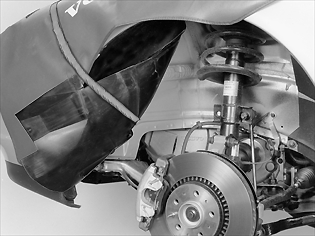

Fig 1: Fender Liner Tied Up To Lifting Beam Using A Retaining Strap

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 x nuts from the wing liner. Remove the support plates on both sides.

Applies to the left-hand side only:

Angle out and tie up the wing liner to the lifting beam using a retaining strap.
