Removing The Air Cleaner (ACL) Housing

Fig 1: Identifying Cover At Side Of Air Cleaner Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Only applies to vehicles with B5254T4 engines

Remove the cover at the side of the air cleaner (ACL) housing.

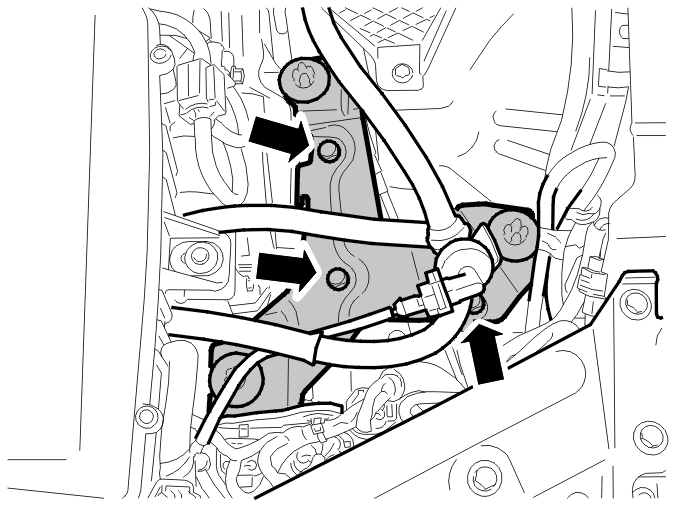

Fig 2: Identifying Holder With Transmission Connectors And Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unhook the holder with the transmission connectors from the bracket. Remove the bracket from the side member.

Fig 3: Air Cleaner Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the air cleaner housing ACL assembly with the intake pipe. Pull the air cleaner (ACL) housing out of its mountings.
