Adjusting The Gear Selector Cable

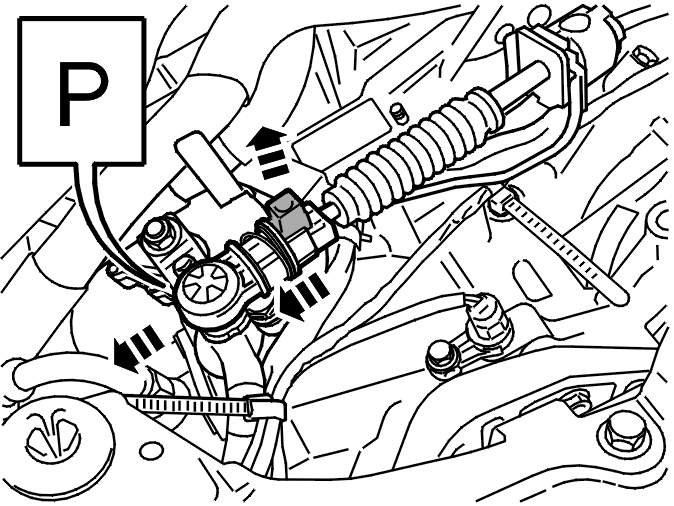

Fig 1: Identifying Gear Selector Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Release the adjuster on the gear selector cable by sliding the spring-loaded sleeve forwards and pulling the lug up to the release position.

Press the lever forwards to the P position on the transmission (the foremost position of the lever). Move the gear shift lever to position P.

NOTE:

Check that P position is engaged: Try to roll the car.

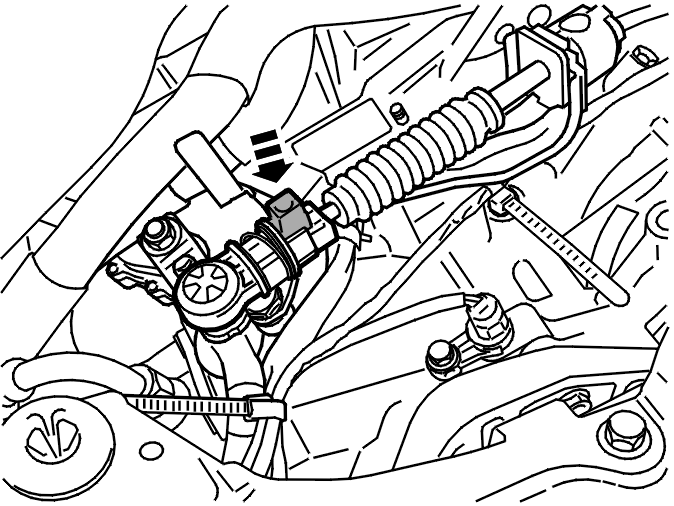

Fig 1: View Of Gear Selector Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the gear selector is in position P.

Press the lug on the cable down.
