Installing The Rubber Seal For The Pipe In The Clutch Cover

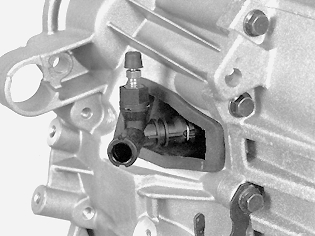

Fig 1: Identifying Rubber Seal For Pipe In Clutch Cover
GLL109086Courtesy of VOLVO CARS OF NORTH AMERICA.

Ensure that the rubber seal locates all the way around.

NOTE:

To install the transmission, see Transmission, Installation .
