Installing The Counterhold

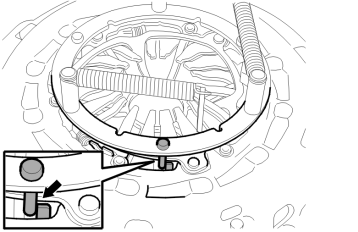

Fig 1: Identifying Three Pins On Counterhold

Courtesy of VOLVO CARS OF NORTH AMERICA.

The three pins on the counterhold lock the automatic adjustment.

Place the counterhold 9997068 as shown in the figure.

Ensure that all the three pins (see the illustration) go down into the correct side in front of the hooks for the automatic adjuster.

Press the counterhold's ring against the pressure plate. Pull out the counterhold's springs. Secure the three hooks in the holes on the clutch as shown in the figure.

Fig 2: Identifying Clutch & Pins

Courtesy of VOLVO CARS OF NORTH AMERICA.
