Installing The Counterhold

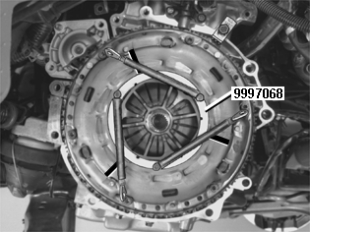

Fig 1: Identifying Three Pins On Counterhold

Courtesy of VOLVO CARS OF NORTH AMERICA.

The three pins on the counterhold lock the automatic adjustment.

Position the counterhold 9997068 as shown in the illustration.

Ensure that all the three pins (see the illustration) go down into the correct side in front of the hooks for the automatic adjuster.

Press the counterhold ring against the pressure plate. Pull out the counterhold springs. Secure the three hooks in the holes in the clutch as illustrated.

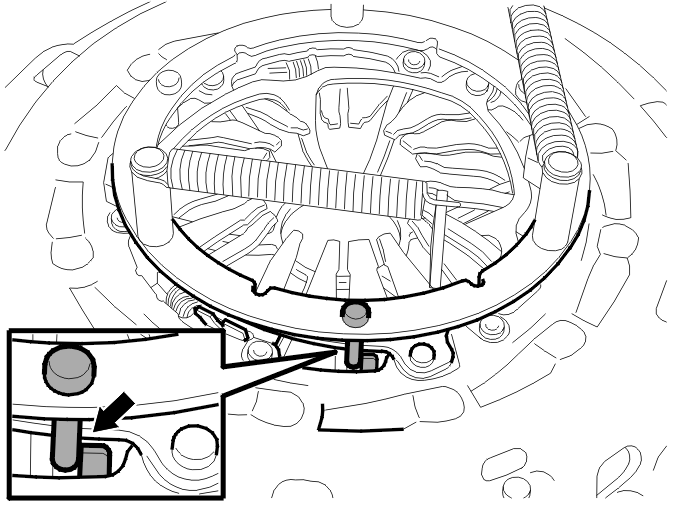

Fig 2: Identifying Correct Side On Hooks

Courtesy of VOLVO CARS OF NORTH AMERICA.
