Installing The Clutch Driven Plate

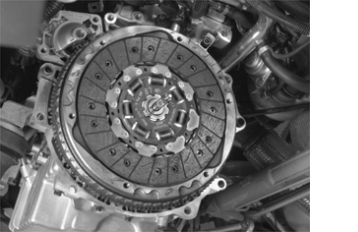

Fig 1: Identifying Clutch Driven Plate
GLL109105Courtesy of VOLVO CARS OF NORTH AMERICA.
CAUTION:

Turn the side of the clutch driven plate hub marked "Transmission side" outward. If the marking on a previously used clutch driven plate is erased, the illustration clearly depicts how the clutch driven plate must be installed.

Install the cone on the centering tool. Tighten the cone (by hand)  . Secure the clutch driven plate.

NOTE:

Tightening tools must not  be used on the cone or damage may be caused to the clutch driven plate.
