Removing The Push Rod From The Master Cylinder

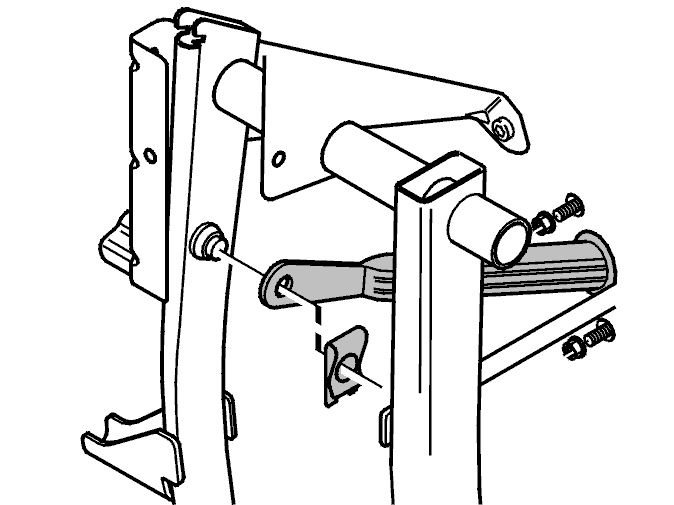

Fig 1: Removing Push Rod From Master Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the retaining clip for the master cylinder push rod. Unhook the push rod from the pedal
• the Torx screw (TX 40) and the lock nuts holding the cylinder in the body.
