Installing The Clutch Pipe On The Cylinder

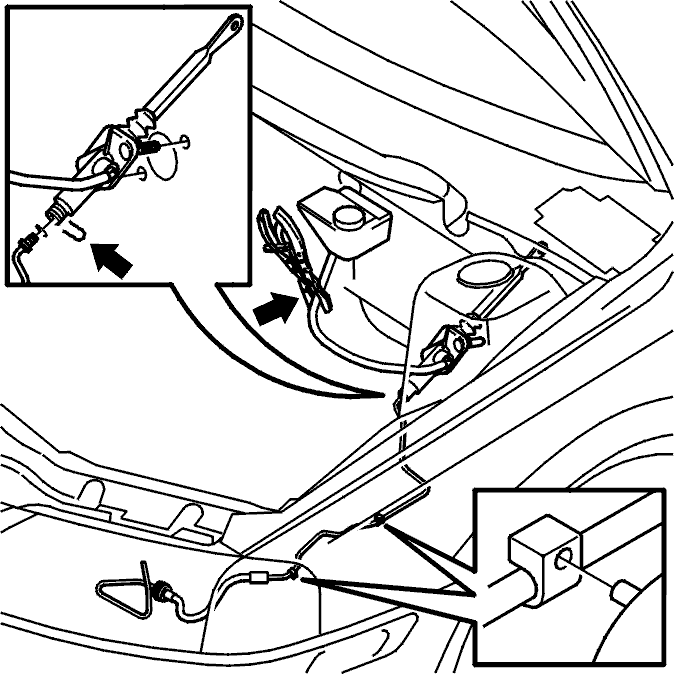

Fig 1: Identifying Clutch Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a new O-ring.

Ensure that the retaining clip is correctly located.

Press the pipe into place in the mountings.

Remove the hose clip.

Bleed the clutch

Final check

Check the brake fluid level. Use only Volvo Genuine parts brake fluid (Volvo DOT 4+) when topping up.

Installing the air cleaner (ACL) housing

Install the air cleaner (ACL) housing, including all hoses and electrical terminals.
