Unscrew Pedal Bearing Screw

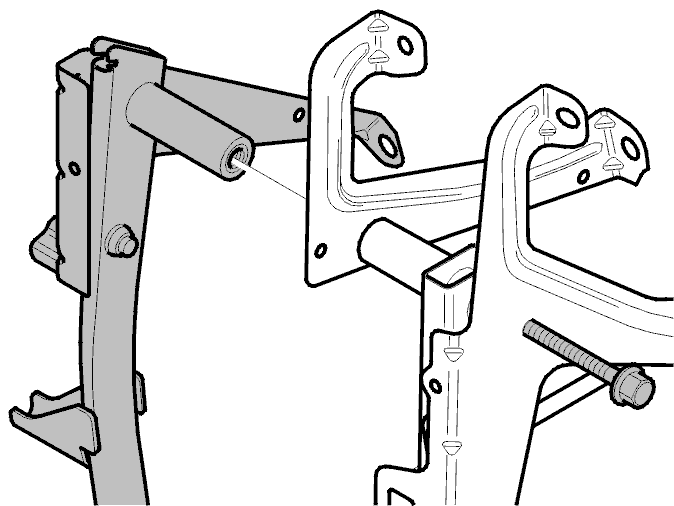

Fig 1: Identifying Pedal Bearing Screw

GLL104549

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unscrew the screw approximately 30 mm.

Remove bracket and pedal.
