Install The Bracket With The Pedal

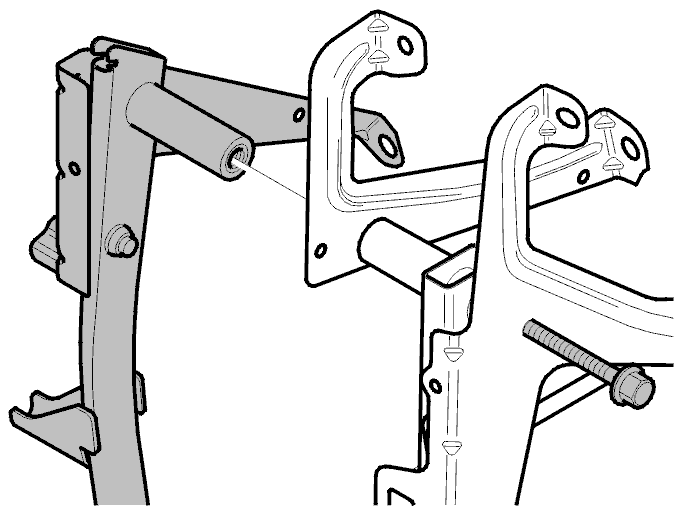

Fig 1: Identifying Clutch Pedal Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the bracket with the pedal.

Loosely install the screw holding the pedal shafts together and the torx screw on the bracket.

Tighten the screw for the pedal shafts. Then tighten the torx screw for the bracket.
