Install Clutch Cylinder Push Rod

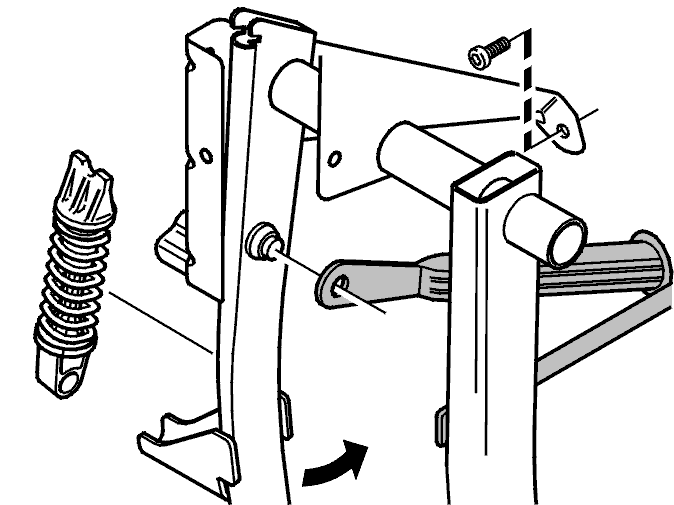

Fig 1: Identifying Clutch Push Rod And Auxiliary Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull up the clutch pedal. Install the clutch cylinder push rod on the pedal with the retaining clip.

Press the pedal down. Install the auxiliary spring.

Install the pedal position sensor on the pedal and the body.

Install the soundproofing panel.
