Removing the Rear Wheel Hub

Raise the car.

Fig 1: Brake Disc And Locating Pin

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• the wheel
• ABS sensor and the cable from the wheel spindle
• the brake caliper mounting screws. Hang up the ABS line and the brake caliper. Use a piece of wire
• the locating pin for the brake disc
• the brake disc
• the holder for the ABS line on the wheel spindle.

Fig 2: Lower Control Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press up the control arm slightly. Use a mobile jack.

Fig 3: Removing Screws And Rear Wheel Hub

Courtesy of VOLVO CARS OF NORTH AMERICA.

(The figure displays the rear wheel hub schematically)

• the screws from rear wheel hub
• the rear wheel hub.

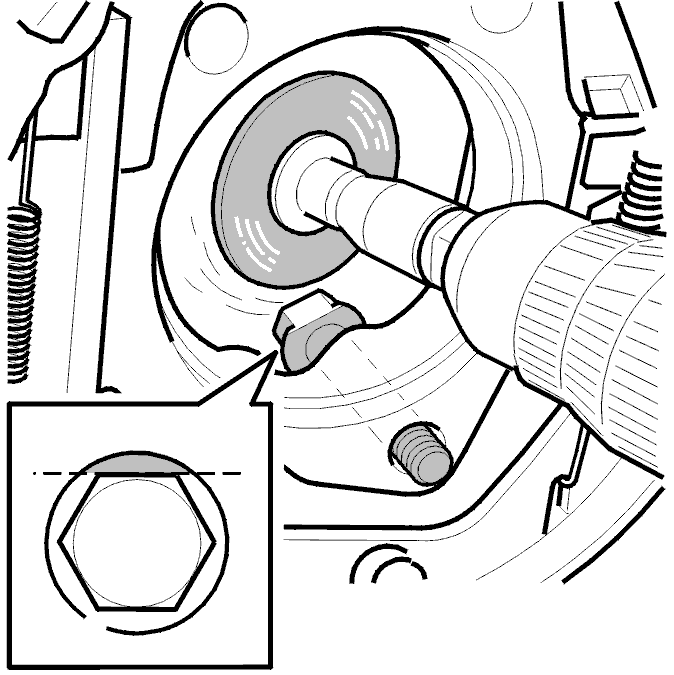

Fig 4: Grounding Off Flange On Lower Rear Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.
