Removing the Front Wheel Hub

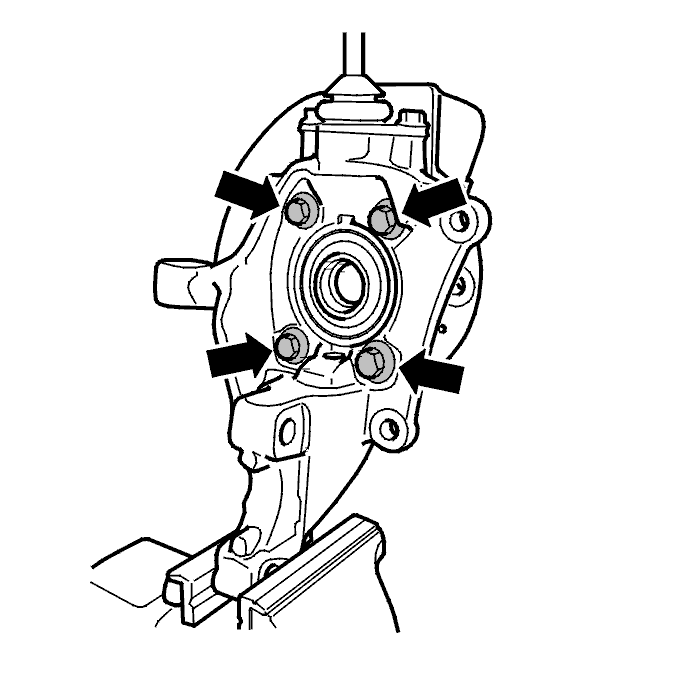

Fig 1: Locating Bolts Holding Hub To Spindle

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the wheel spindle. See Removing the Wheel Spindle
• Place the wheel spindle in a soft jawed vice  .

Remove

• the four screws holding the hub to the wheel spindle
• the hub.
