Removing rear spring seat

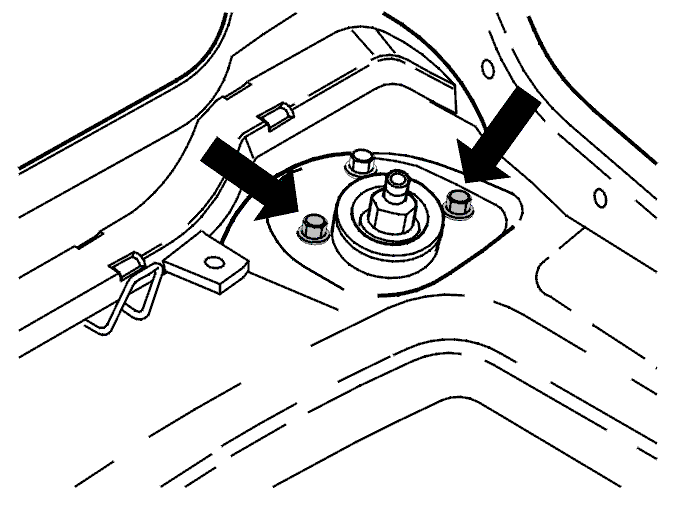

Fig 1: Locating Screws For The Upper Spring Seat

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• the shock absorber and spring. See Spring Rear, Replacing
• both the spring seat screws in the cargo compartment.

Fig 2: Identifying Screws From Spring Seat

Courtesy of VOLVO CARS OF NORTH AMERICA.

• both screws for the spring seat in the wheel arch
• the spring seat.

Fig 3: Identifying Upper Bearing In Spring Seat

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the shock absorber upper bearing. See Shock Absorber Bearing, Upper Rear, Replacing .

Transfer the shock absorber upper bearing to the new spring seat. Center the upper bearing in the new spring seat. Tighten the "mounting screw". Tighten to 25 Nm  .
