Installing Rear Spring Seat

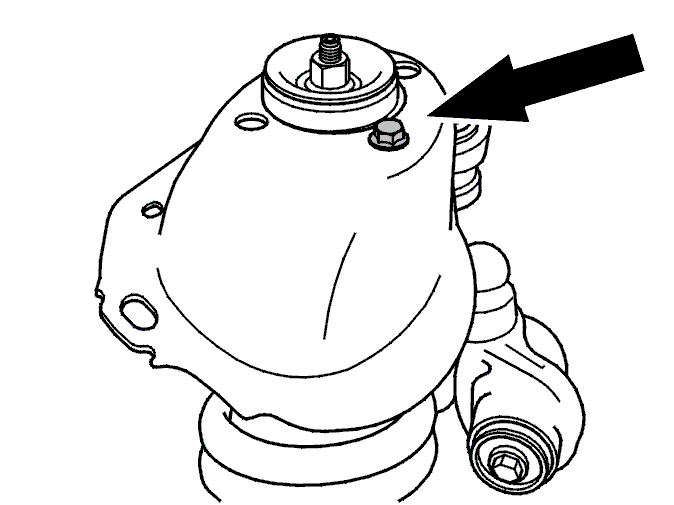

Fig 1: Identifying Screws From Spring Seat

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Upper Bearing Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Screws From Spring Seat

Courtesy of VOLVO CARS OF NORTH AMERICA.

Then tighten both the lower screws for the spring seat. Tighten to 50 Nm
Install spring and shock absorber. See Removing the Upper Mounting For the Shock Absorber .
