Removing the Spring

Fig 1: Removing/Installing Nut From Spring Strut Mounting Using Socket And Torx Wrench TX40 As A Counter Hold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fasten the hydraulic tool in a vise. Take the load off the springs. Use the hydraulic tool: 9512911 together with claw: 9512913 .

Remove the nut from the spring strut mounting. Use socket: 9995500 and Torx wrench TX40 as a counterhold.

Remove:

• the spring seat
• the shock absorber.

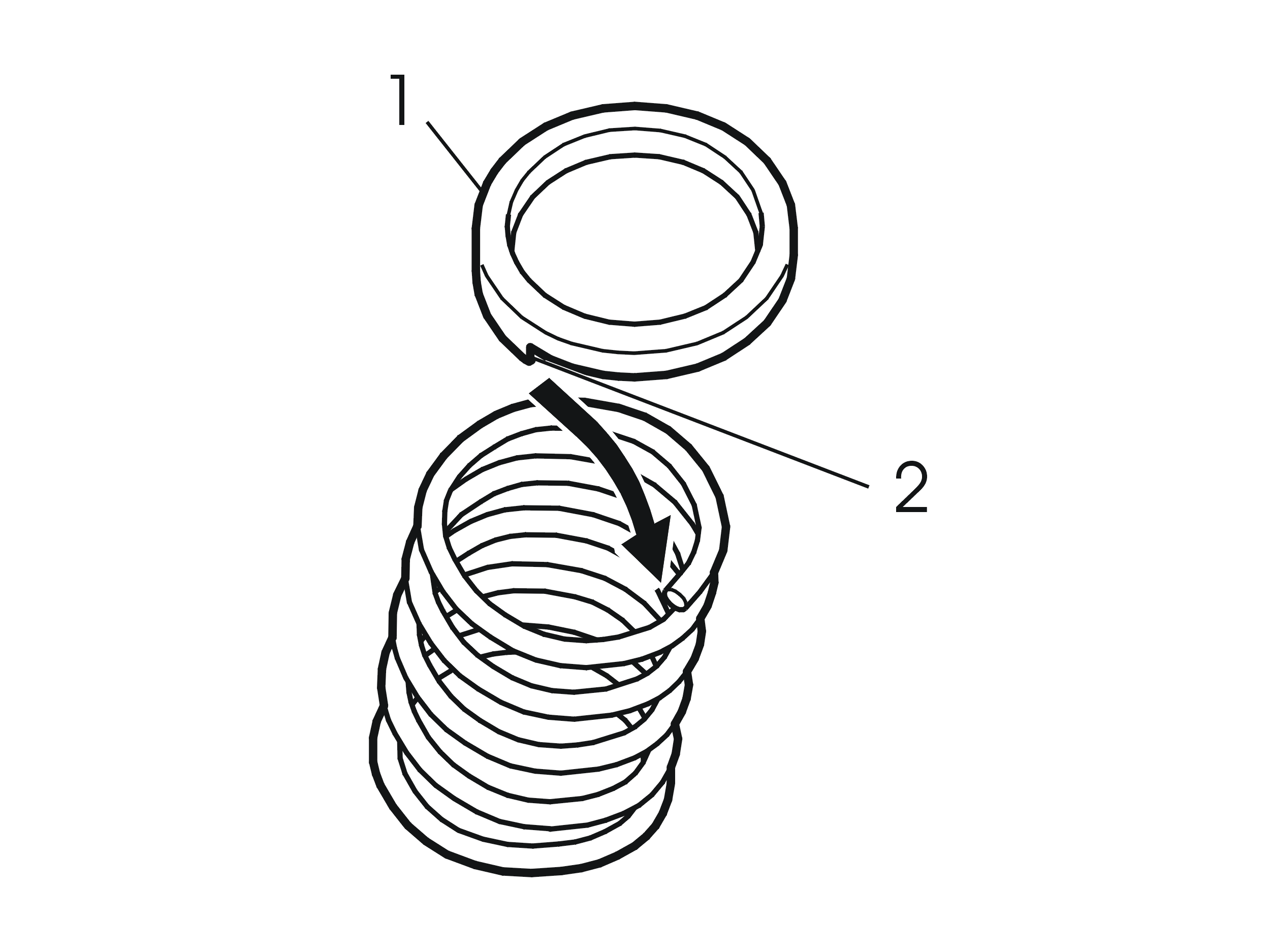

Fig 2: Rubber Shim From Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rubber shim (1) for the spring. Position the rubber shim on the new spring. Replace the rubber liner if it is damaged.
