Only Replacing the Spring

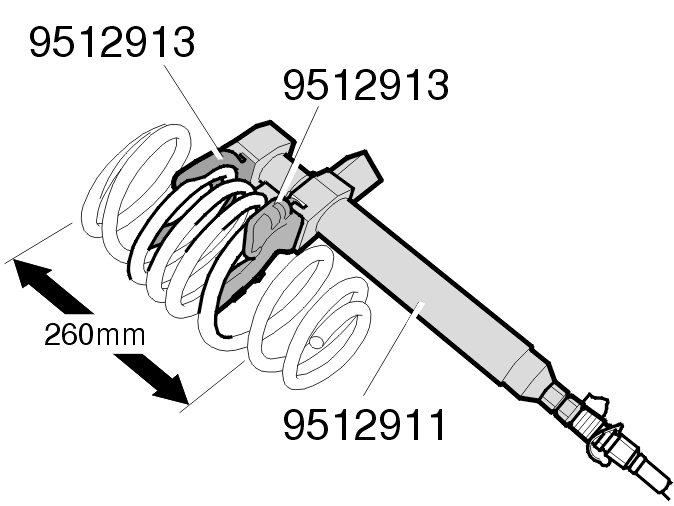

Fig 1: Compressing New Spring To A Length Of Approximately 260 MM Using Hydraulic Tool
GLL118992Courtesy of VOLVO CARS OF NORTH AMERICA.

Compress the new spring to a length of approximately 260 mm. Use hydraulic tool 9512911 together with claws: 9512913 .
