Disassembling the Spring Strut

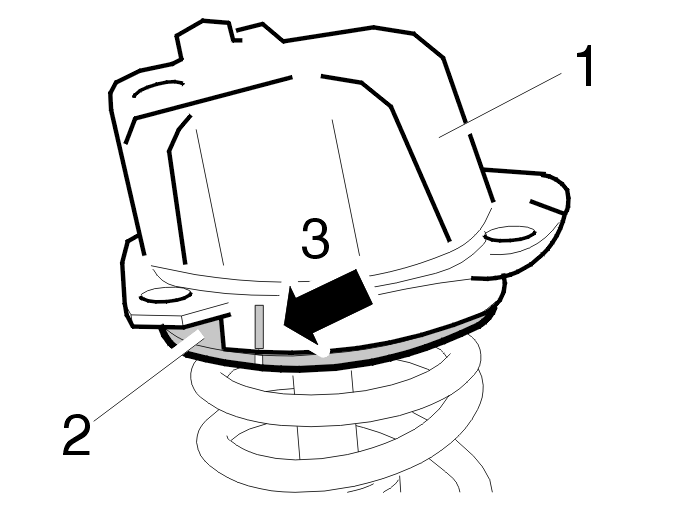

Fig 1: Rubber Shim, Spring Seat And Chalk Mark

Courtesy of VOLVO CARS OF NORTH AMERICA.

Mark the rubber shim (1) and the spring seat (2). Use a chalk mark (3) to facilitate installation.
