Removing the spring strut

Fig 1: Identifying Retaining Spring Strut Wheel Spindle Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove both the nuts from the screws in the spring strut - wheel spindle.

Fig 2: Securing Wheel Spindle With A Piece Of Wire So That It Cannot Turn Outwards When Removed From Spring Strut

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the two screws for the spring strut wheel spindle.
• Secure the wheel spindle with a piece of wire so that it cannot turn outwards when removed from the spring strut.

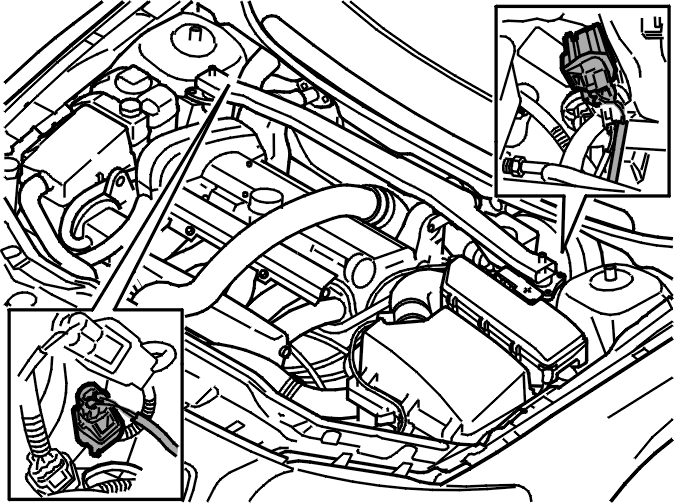

Fig 3: Locating Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Loosen the connector by the suspension turrets and the lead from the clips.

Pull down the lead to the wheel housing.

HINT: Tie a wire in the cable harness for easier installation.

Fig 4: Nuts Holding Spring Strut Mounting In Bodywork

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the nuts that hold the shock absorber bearing in the body, 3 pcs.
• the spring strut.
