Preparatory work

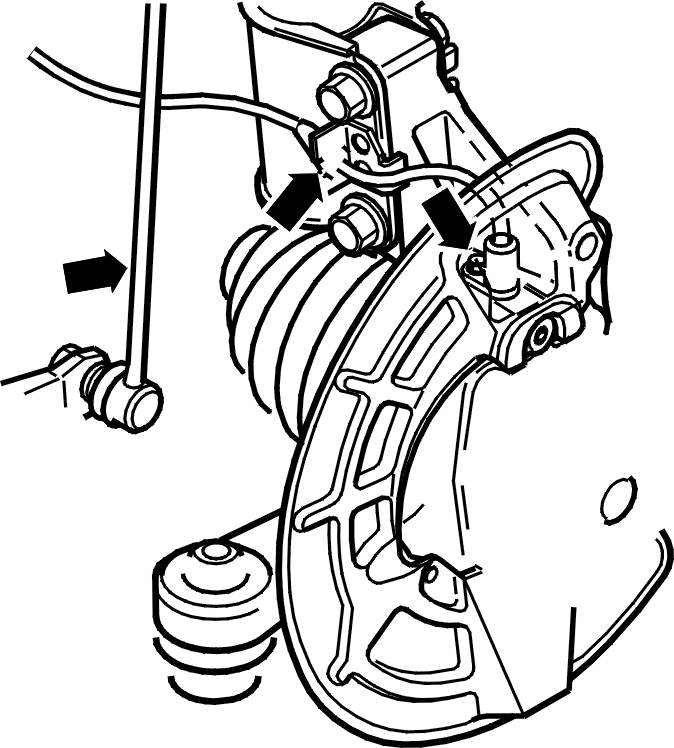

Fig 1: Identifying ABS Line

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the wheel
• the anti-roll bar link from the spring strut.

Remove:

• the ABS line from the spring strut
• the ABS sensor. Hang up the sensor using a piece of wire.
