Installing the Shock Absorber Bearing

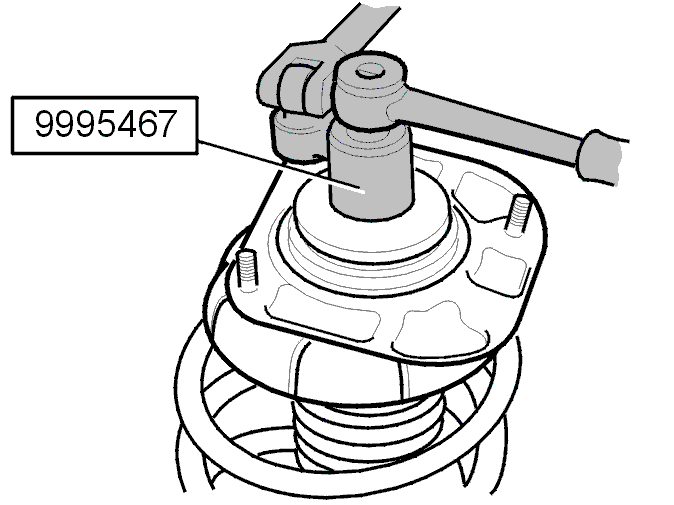

Fig 1: Identifying Shock Absorber Bearing Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the support plate
• the washer
• the nut and tighten according to Tightening Torque . Use socket 9995467 and 3/8" torx wrench as a counterhold.
