Removing the Suspension Module (SUM)

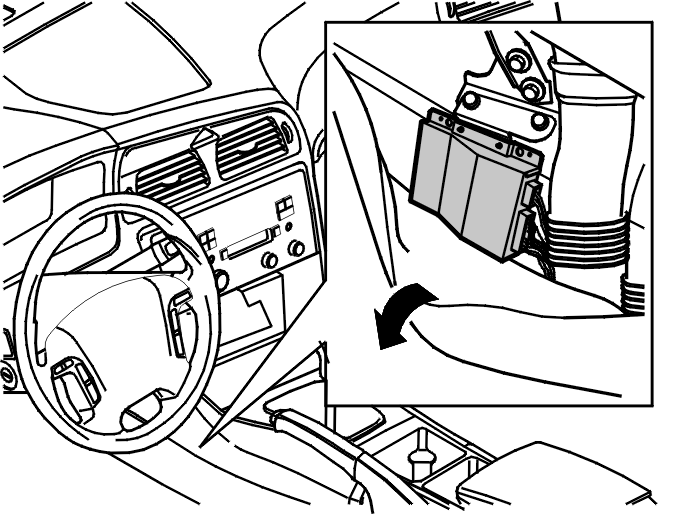

Fig 1: Removing Suspension Module
GLL106262Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2x M8 screws.

Disconnect the 2x connectors.

Remove the control module and the bracket.
