Installing the Anti-Roll Bar

Fig 1: Screws Holding Anti-Roll Bar In Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

• the anti-roll bar
• the screws holding the anti-roll bar in the sub-frame. Tighten to 50 Nm  .

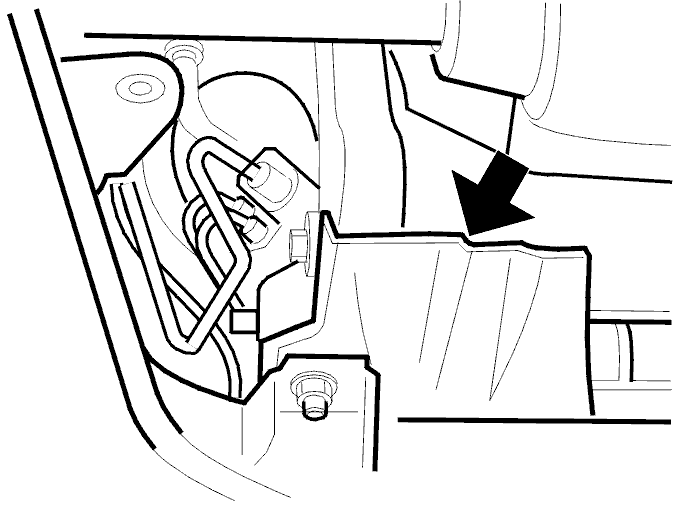

Fig 2: Collision Protection System Between Steering Gear And Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies only to right-hand drive cars

• At the same time locate the collision protection system between the steering gear and the sub-frame.

Fig 3: Anti-Roll Bar

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

• the anti-roll bar links. Use new nuts. Tighten to 60 Nm  . Counterhold using a Torx wrench.
