Assembling the upper and lower steering shaft

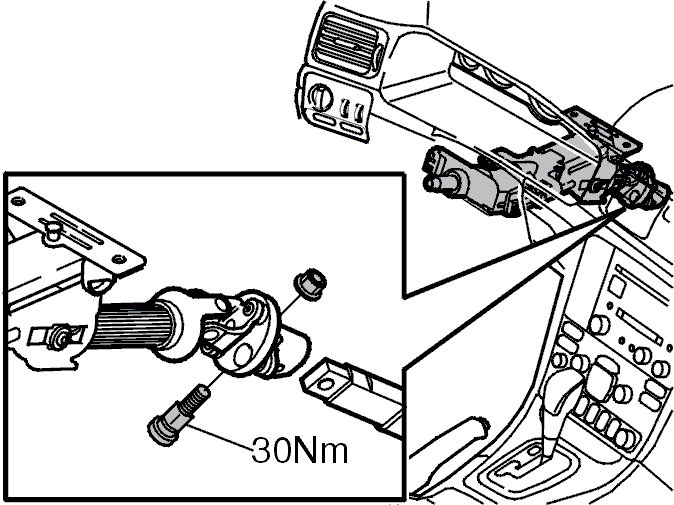

Fig 1: Identifying Upper & Lower Steering Shaft Assembled
GLL106741Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the upper steering shaft down. Assemble the upper steering shaft with the lower steering shaft

Install the screw and nut. Tighten to 30 Nm

NOTE:

Use a new screw and nut.
