S60 Base, 2.4 61, Standard
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering - Removal, Replacement And Installation
>>
Steering Wheel, Steering Wheel Lock, Steering Column, Shaft (2005-2009)
>>
Replacing the steering column / steering shaft
>>
Removal
>>
Remove the steering wheel lock unit
Remove the steering wheel lock unit

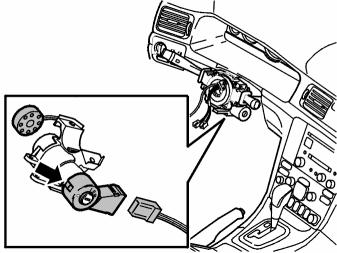

Fig 1: Identifying Snap Fastener & Steering Wheel Lock Unit
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove the connectors
Press in the snap fastener and remove the steering wheel lock unit.
