Remove the steering column and the steering shaft

Fig 1: Identifying Steering Column Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the four screws holding the steering column
• Pull the steering column backwards from the three guides.

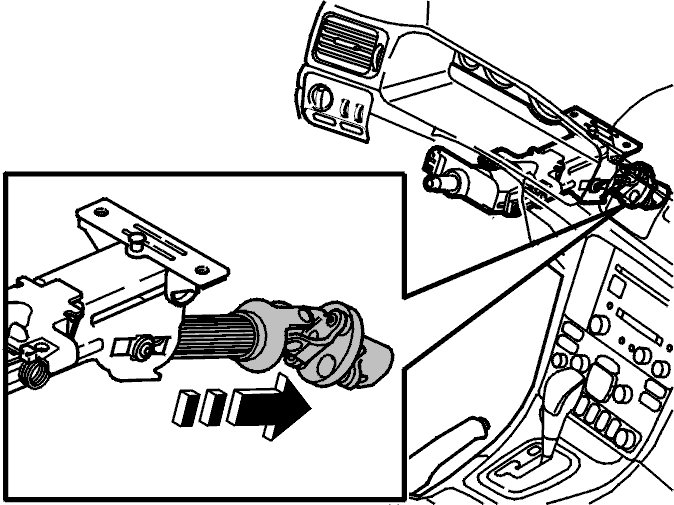

Fig 2: Identifying Steering Shaft & Steering Column

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Pull the steering shaft out from the steering column.

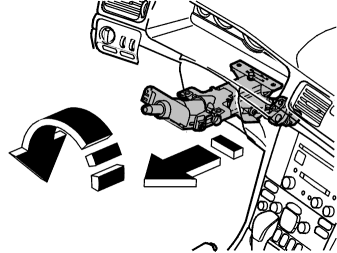

Fig 3: Identifying Steering Column Turned Upside Down

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Pull out the steering column a little and turn it a half turn to the left until it is upside down.

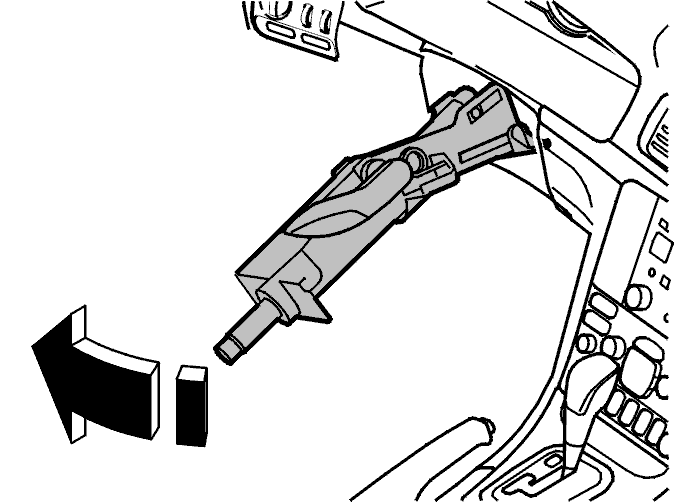

Fig 4: Identifying Steering Column Pulled Out Backwards & Angled To Left

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Pull out the steering column backwards and angled to the left.
