Install the steering column and the steering shaft

Fig 1: Identifying Steering Column Upside Down

Courtesy of VOLVO CARS OF NORTH AMERICA.

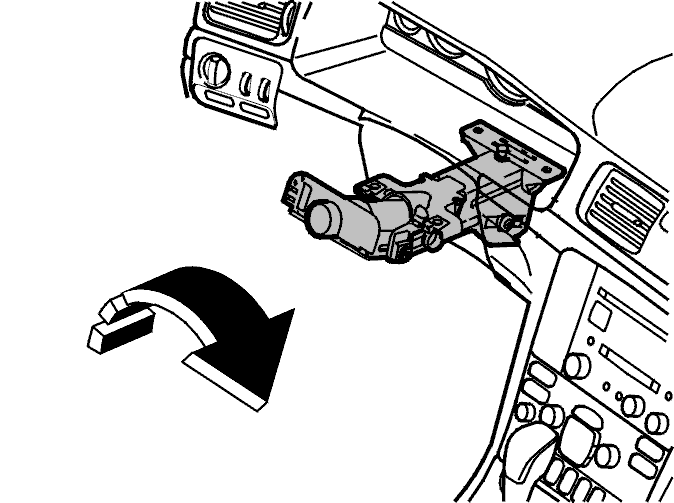

Fig 2: Identifying Steering Column Turned Right (Correct Position)

Courtesy of VOLVO CARS OF NORTH AMERICA.

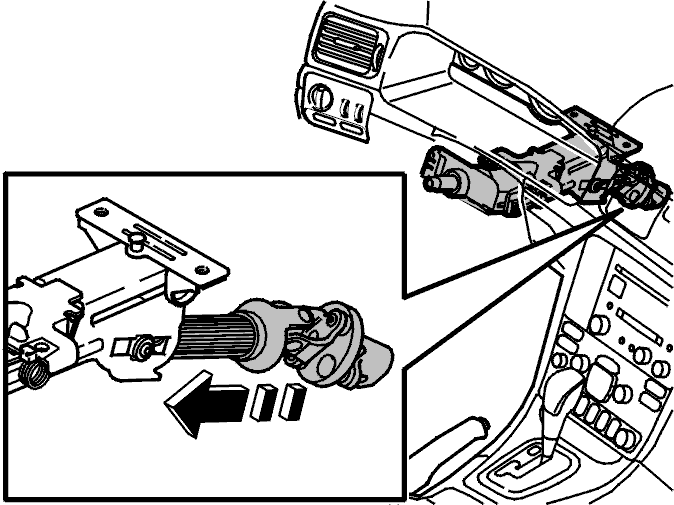

Fig 3: Identifying Steering Shaft & Steering Column

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the steering shaft on the steering column.
NOTE:
- Ensure that the splines on the steering shaft are clean
- Lubricate the steering shaft splines and the steering column bearing. Use low temperature grease, P/N 1161417-9 (30 grams).
  Lubrication is important to avoid noise from the steering column.

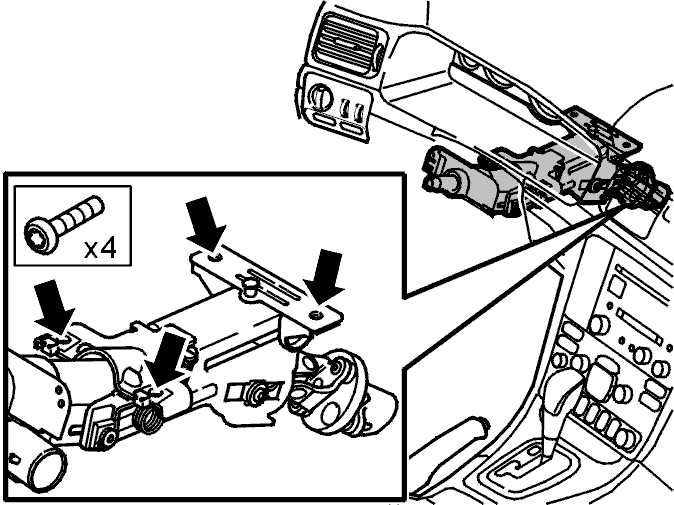

Fig 4: Identifying Steering Column Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Check that the rear seat rails are undamaged.
