Lever steering wheel adjustment, replacing: Removal

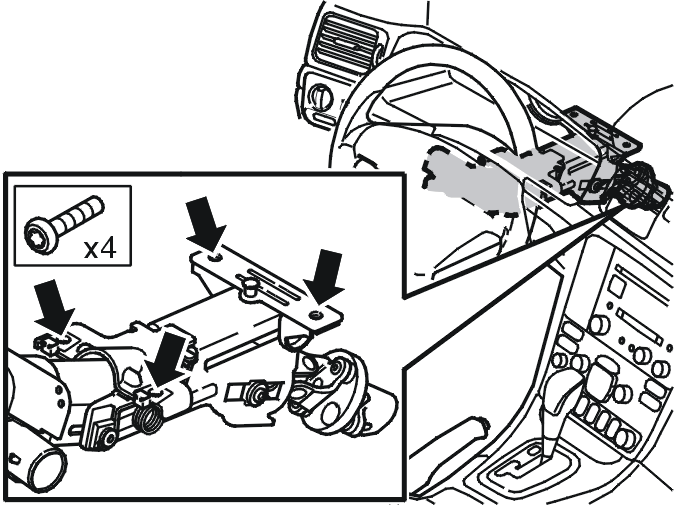

Fig 1: Identifying Steering Column Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the four screws holding the steering column
• Pull the steering column backwards out from the three guides and press to the right.

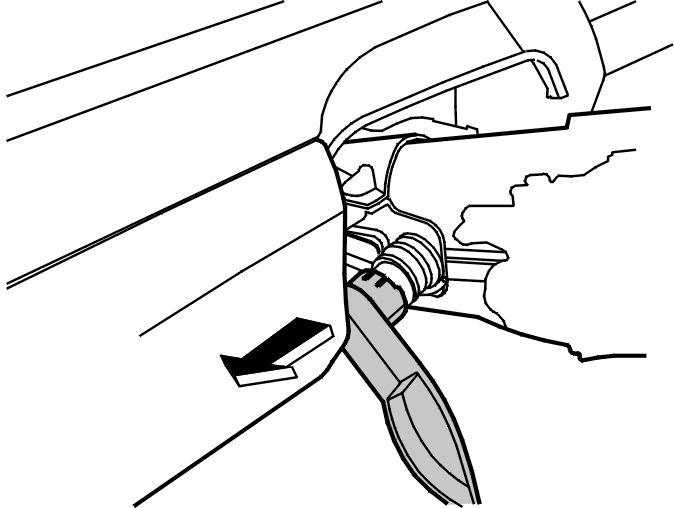

Fig 2: Identifying Lever Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the lever by pulling it straight out.
