Lowering the sub-frame at the rear edge

Fig 1: Identifying Rear Sub-Frame Screws, Brackets & Washers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position a mobile jack with universal plate 9995972 at the rear of the sub-frame.

Remove the screws holding the sub-frame brackets to the bodywork on both sides.

Remove the rear sub-frame screws together with the brackets and washers.

Unscrew the front screws in the sub-frame by 10-15 mm.

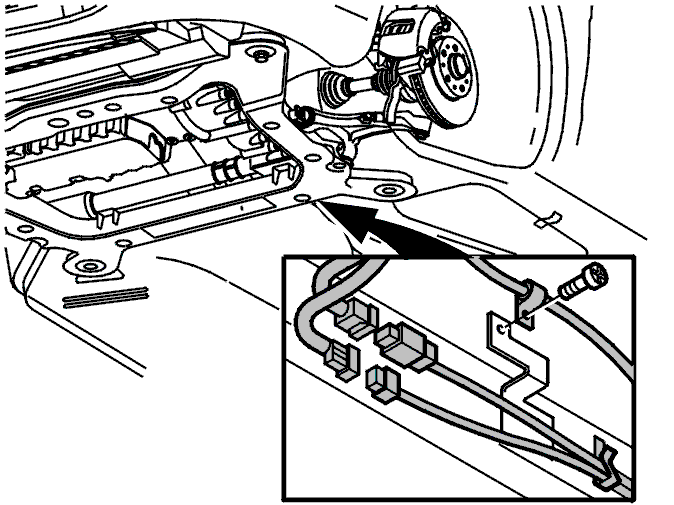

Fig 2: Identifying Heated Oxygen Sensor (HO2S) Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the bracket for the heated oxygen sensor (HO2S) from its mounting (6 cylinder engines only).

Lower the rear edge of the sub-frame approximately 90 mm. Ensure that the steering gear screws are released from the sub-frame.

Remove the mobile jack.
