Installing the steering arm

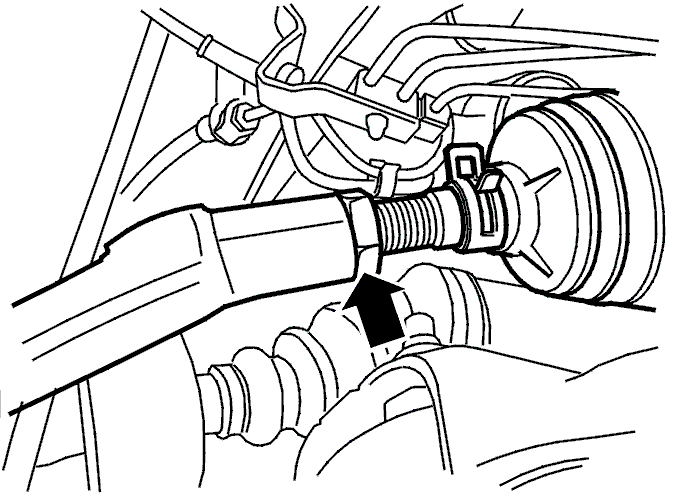

Fig 1: Identifying Steering Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the steering arm
• the steering arm on the wheel spindle. Use new lock nut. Use counterhold and tighten. See: Tightening torque

  Use: 9512050

• the wheel. See: Installing wheels
• Align the wheels. See: Wheel alignment, checking / adjusting .
