Pressure hose, replacing: Removal: Notes

Fig 1: Identifying Screw, Lock Bracket And Pipe Coupling Area At Power Steering Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off screw (1) a few turns.

Remove:

Fig 2: Identifying Clamp On Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Release the clamp on the sub-frame.

Remove the return hose. See Replacing the return hose .

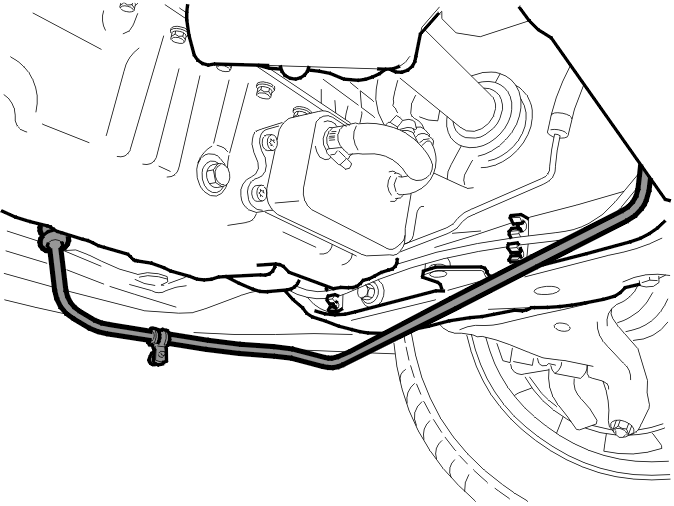

Fig 3: Identifying Nipple Beside Steering Gear

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the nipple beside the steering gear. Pull the pipe out of the steering gear.

Fig 4: Identifying Heater Fuel Line Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

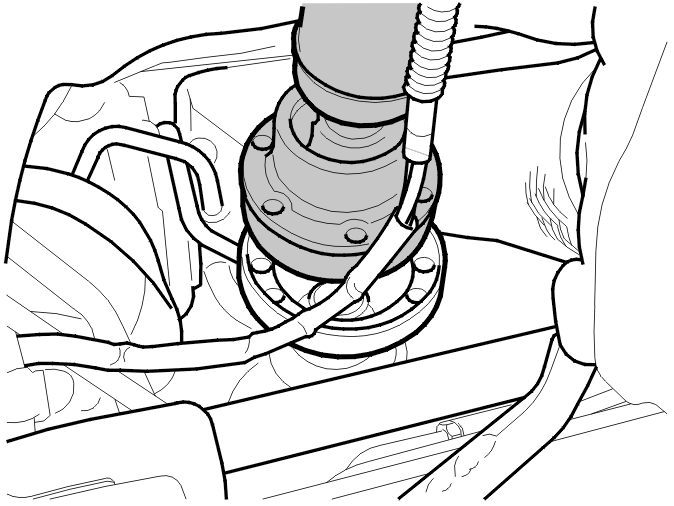

Fig 5: Identifying Propeller Shaft CV Joint

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies only to All-wheel drive (AWD):

Removing the front propeller shaft

NOTE:

If the same propeller shaft is to be reused, mark the propeller shaft CV joint in relation to the bevel gear flange.

Remove the screws from the propeller shaft.

Use counterhold 9995743 .

Pull down the front section of the hose.

Remove the hose.

NOTE:

Make a note of the routing of the hose.
