Installing delivery lines

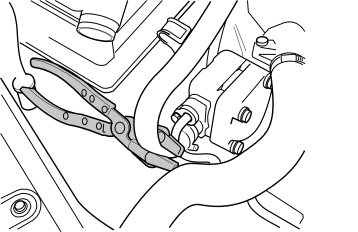

Fig 1: Identifying Lock Grip / Hose Pliers On Power Steering Pump Feeder Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the supply pipe on the power steering pump. Tighten to :Tightening torque

NOTE:

Use a new O-ring.

Remove the hose pliers from the supply line.
