Removing the seat frame

Fig 1: Backrest Frame And Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the seat from the car. See Removing power seats, tilting
• the seat cushion padding. See Seat cushion padding
• the backrest frame and mounting. See Backrest (frame and mounting) .

Disconnect the wiring.

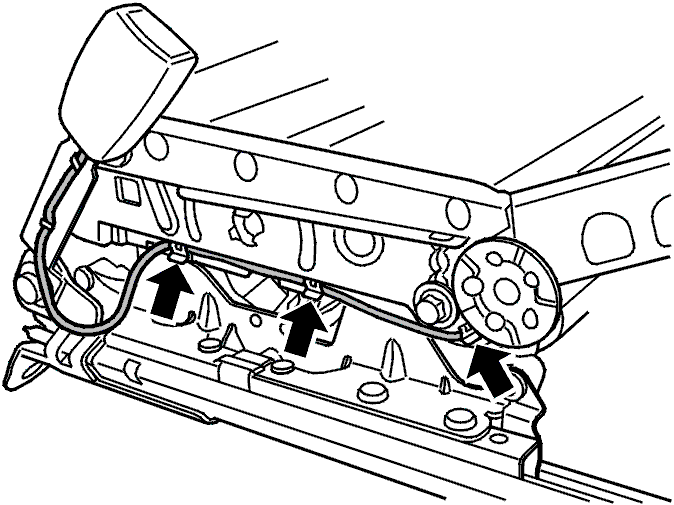

Fig 2: Seat Belt Buckle And Two Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the seat belt buckle. See Seat belt buckle .

Slacken off two plus two screws.

Remove the seat frame.
