Removing the tension spring

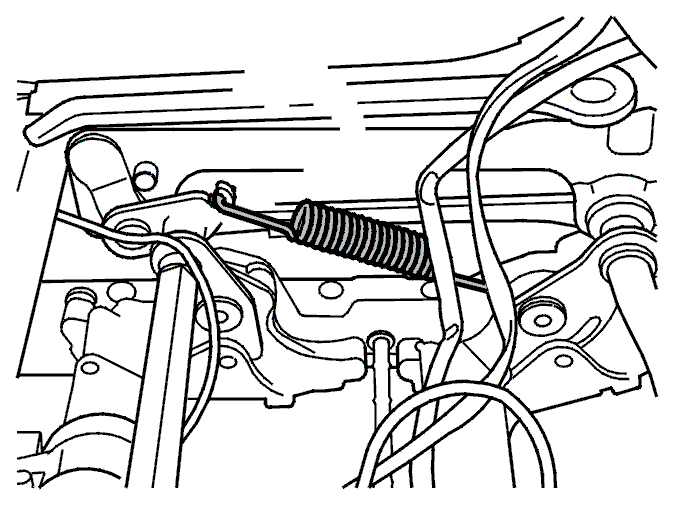

Fig 1: Tension Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the seat from the car. See Removing power seats, tilting .

Remove the seat cushion padding. See Seat cushion padding .

Remove the spring.

WARNING:

Be careful when the spring releases. There is considerable force in the spring.

Remove the spring.
