Removing the seat belt buckle

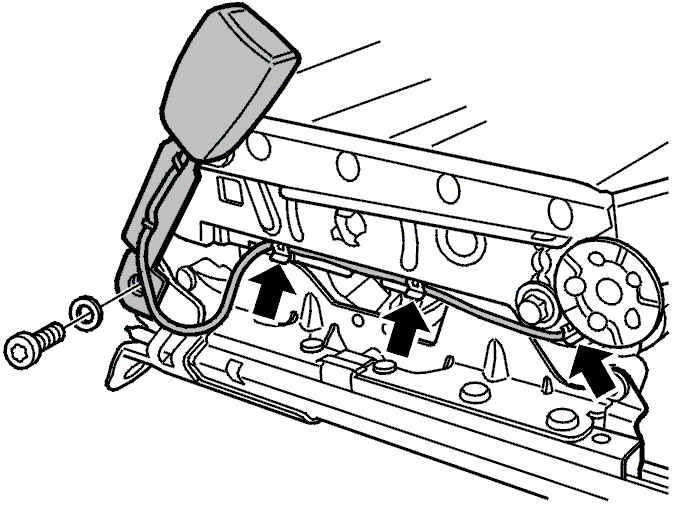

Fig 1: Wiring From Steel Clips
GLL107299Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the seat from the car. See Removing power seats, tilting .

Disconnect the connector. See Multi-connector .

Detach the wiring from the steel clips.

NOTE:

Check that the wiring is correctly routed.

Remove:
