Removing the drive shaft

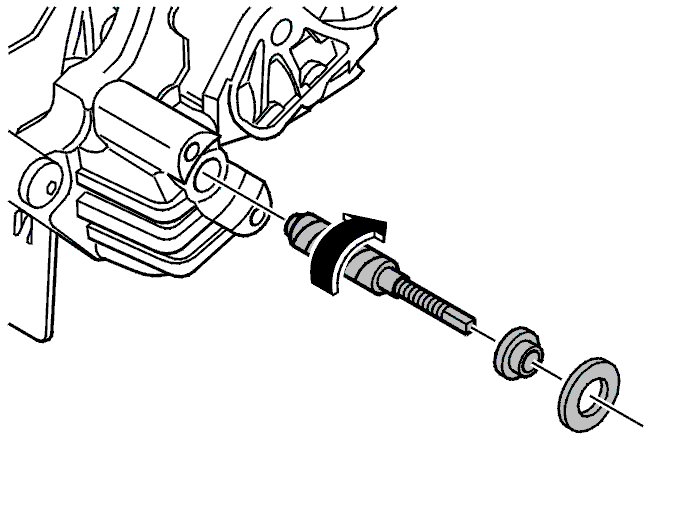

Fig 1: Unscrewing And Removing Drive Shaft With Rack
GLL107297Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Unscrew and remove the drive shaft with the rack.

NOTE:

Ensure that the gears do not move during the operation. There is a risk of function failure and increased wear.
