Seat rail drive end

HINT: To facilitate the work read " Tips"  Tip  .

Remove:

• the seat from the car and the bracket according to Bracket (cross stay) .
• connectors according to Connector .
• height adjustment gear motor, front according to Height adjustment motor, front .
• height adjustment gear motor, rear according to Height adjustment gear motor, rear .

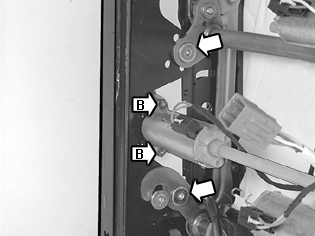

Fig 1: Motor For Front-Rear Adjustment Two Screws (B)

Courtesy of VOLVO CARS OF NORTH AMERICA.

• two stud screws.

Install:

In reverse order.
