Replacing seat cushion padding

Carry out Upholstery, seat cushion, replacing .

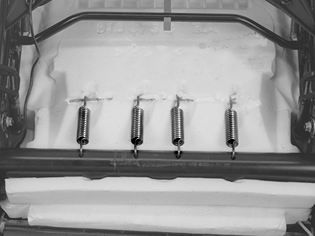

Fig 1: Four Springs On Underside Of Cushion

GLL110050

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the four springs on the underside of the cushion.

Remove backrest wiring according to Heater pad, replacing .

Replace padding.

Install new seat heater element according to Heater pad, replacing .

Install:

In reverse order.

See Upholstery, seat cushion, replacing
