Removing old heater pads

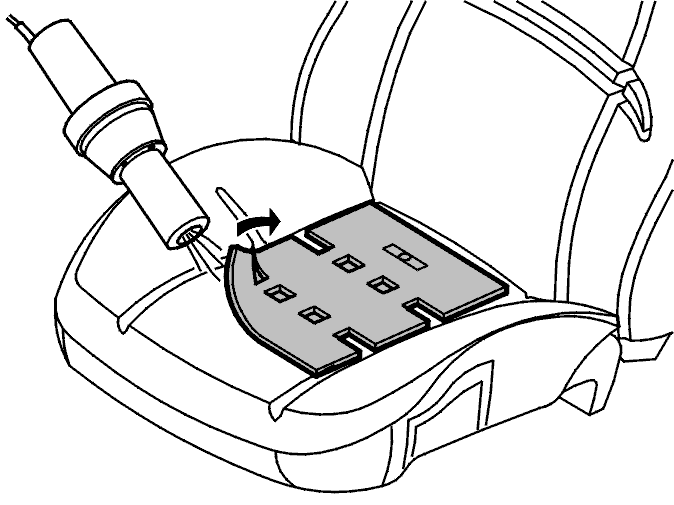

Fig 1: Heating Heater Pad

Courtesy of VOLVO CARS OF NORTH AMERICA.

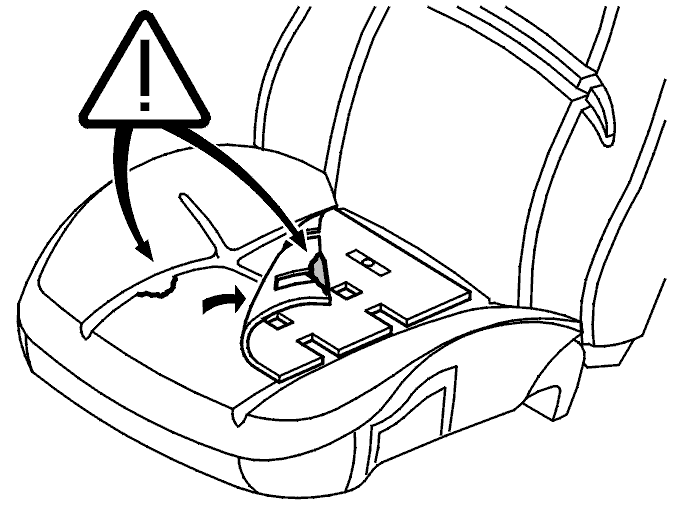

Fig 2: Damaging Foam Filling

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:
Ensure that the foam filling is not damaged when removing the heater pad. Ensure that the pad is detached from the foam filling. This is to avoid function problems when installing the new heater pad.
NOTE:
Damaged foam filling must be replaced. This to guarantee function. This also applies to damage caused by cracks in the seat back and seat frame.
