Head restraint front seat

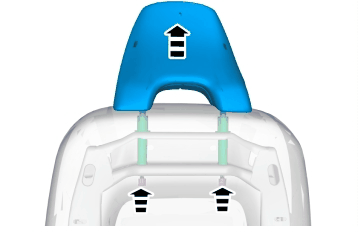

Fig 1: Pressing Catches At Bottom Of Protective Pad Downwards And Lifting Head Restraint Upwards

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the two catches at the bottom of the protective pad downwards.

Press through the upholstery.

Lift the head restraint upwards while the catches are pressed in.

Press down head restraint until the catches lock.

NOTE:

Check by lifting the head restraint.

It should not be possible to move it upwards.
