Electric motor, backrest rake

Operation Number(s):

NOTE:

Removal steps in this procedure may contain installation details.

Remove the backrest padding. Upholstery back rest, replacing

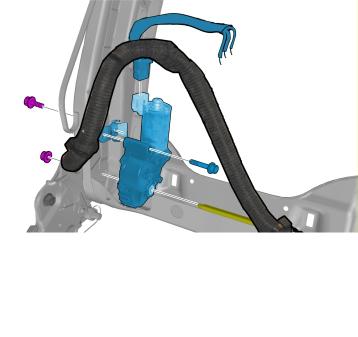

Fig 1: Back Motor
GLL168617Courtesy of VOLVO CARS OF NORTH AMERICA.

To install, reverse the removal procedure.
