Installing the whiplash unit on non-folding seats

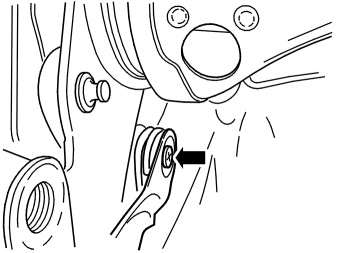

Fig 1: Whiplash Element

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install a new  whiplash element.

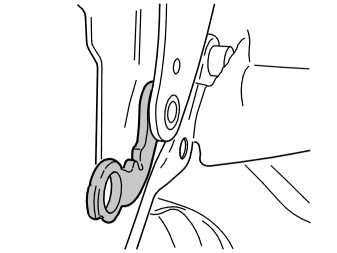

Fig 2: Upper Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• a new spring
• the bracket
• a new Torx screw and tighten. See: Summary of tightening torques for specific components

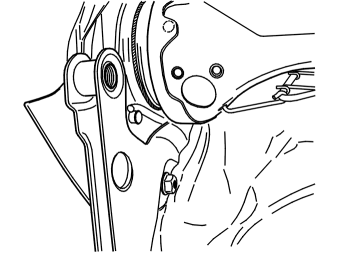

Fig 3: Whiplash Element

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the shaft
• the bushing
• the lock nut, tighten the M8 screw and the nut. See: Summary of tightening torques for specific components .

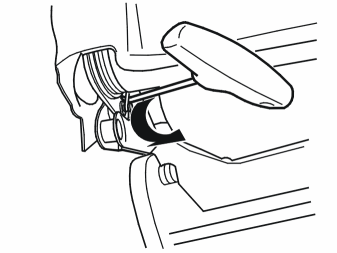

Fig 4: Lifting Spring Off Stop

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slide the entire whiplash unit up towards the backrest frame.

Hook on the spring using 9512943 .

Reinstall the upholstery.

Install:

• the 4 x M10 screws for the backrest frame
• the cover
• the side panel.
