Installing the side panel, mechanical front seat

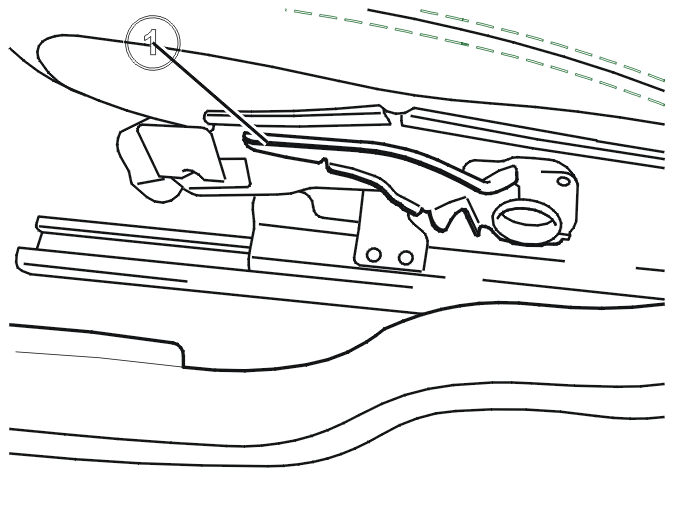

Fig 1: Threading Side Panel On Rail For Handle
GLL146567Courtesy of VOLVO CARS OF NORTH AMERICA.

Thread the side panel on the rail (1) for the handle.

Install the handle using 1 screw. Tighten.

Press the side panel into place.

Install the screw at the front edge of the side panel. Tighten.

Lower the seat cushion.
