Removing the side panel power front seat

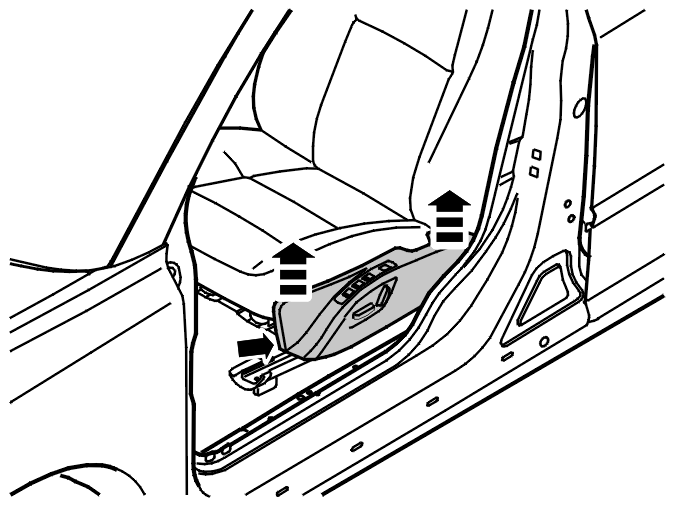

Fig 1: First Pull Up Front Edge Of Side Panel & Then Pull Up Rear Edge Of Side Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the battery negative lead. See: Battery, disconnecting
• the screw at the front edge of the side panel.

Pull the side panel up to detach it from the seat. First pull up the front edge of the side panel. Then pull up the rear edge of the side panel.

Remove:

• the 3 tie straps
• the connector under the seat cushion
• the 3 screws. Remove the control panel from the side panel.
