Removing the seat heating module (SHM)

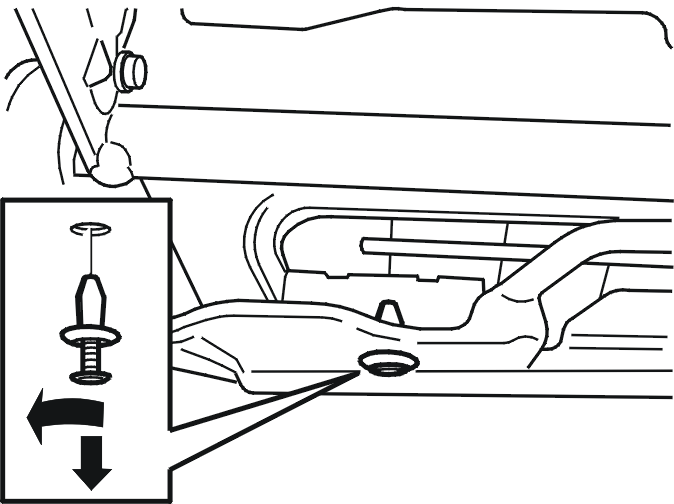

Fig 1: Seat Heating Module Clip

GLL141769

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the 1 clip
the connectors
the control module.
